Help needed loading SpriteFrames dynamically from JSON configuration in Cocos Creator 3.8.6

Cocos Creator
1

Hello Cocos Creator community,

I am developing a 2D game in Cocos Creator 3.8.6 where each level has a different configuration stored in a JSON file. The JSON looks like this:

{
  "Levels": [
    { "id": 1, "bg": "BgLevel1", "pointToBeat": 20 },
    { "id": 2, "bg": "BgLevel2", "pointToBeat": 20 },
    { "id": 3, "bg": "BgLevel3", "pointToBeat": 20 },
    { "id": 4, "bg": "BgLevel4", "pointToBeat": 20 },
    { "id": 5, "bg": "BgLevel5", "pointToBeat": 20 }
    // ... more levels
  ]
}

I load this JSON in a GameManager singleton component, which parses and stores the level data. Then, in my SetLevel component, I try to load the background image dynamically based on the bg property of the current level.

Here is the relevant code snippet from SetLevel.ts where I attempt to load the sprite:

const path = `Levels/${levelData.bg}`; // e.g. "Levels/BgLevel4"

resources.load(path, SpriteFrame, (err, spriteFrame) => {
  if (err) {
    console.error(`Error loading sprite at ${path}:`, err);
    return;
  }
  this.backgroundSprite.spriteFrame = spriteFrame;
});

My images are .webp files placed inside assets/resources/Levels/. In the editor, when I click on these images, they show as type SpriteFrame, so I expect resources.load to work with SpriteFrame type.

However, I get the following error at runtime:

Error loading sprite at Levels/BgLevel4: Error: Bundle resources doesn’t contain Levels/BgLevel4

I have verified:

  • The files are inside the resources folder.
  • The path is correct and matches the file names exactly (case-sensitive).
  • The project is saved and rebuilt after adding the assets.
  • backgroundSprite is properly assigned in the editor.

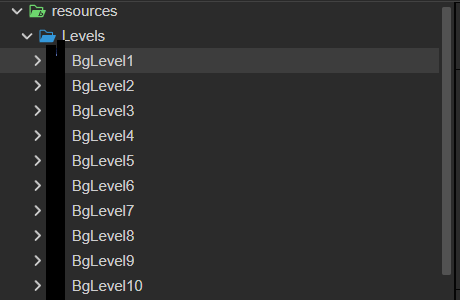

image460×300 2.86 KB

Thank you very much in advance!

2

Of course! Here’s a short, natural-sounding reply you could post:

3

Problem solved : I just needed to extend the path all the way to the SpriteFrame.

const path = `Levels/${levelData.bg}/spriteFrame`;
