Particles no longer work on Android after migrating to cocos2d-x-3.17

cocos2d-x
1

I have been developing my game for over 3 years now with zero particle problems. I have suddenly been 100% blocked by this newly introduced bug after upgrading to 3.17.

My iOS build is working as expected, but all of my android builds crash immediately after trying to instantiate any ParticleSystemQuad. The logcat tells me it’s an openGL error 0x0502:

image2390×274 91.8 KB

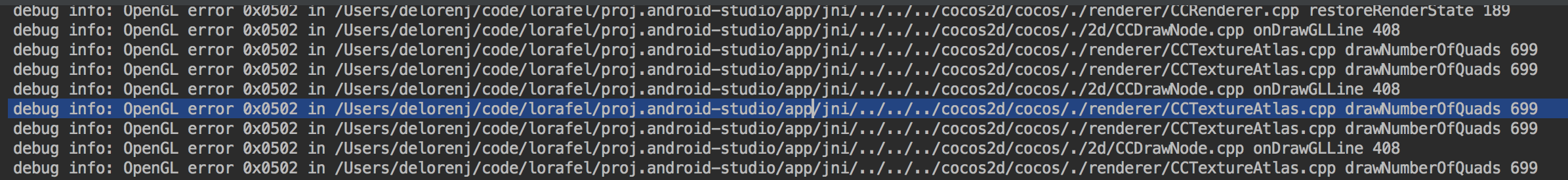

D/cocos2d-x debug info: OpenGL error 0x0502 in CCTextureAtlas.cpp drawNumberOfQuads 699

I have tried all the suggestions for similar problems found on the forum throughout the years in previous cocos2dx versions, but nothing has worked. I am currently using plist files with embedded textures, but switching to non-embedded textures does not fix the problem. This is a huge issue and I’m not understanding how no one else is experiencing this same problem since I can replicate it using the simplest of HelloWorld builds with a single particle.

image1418×110 15.6 KB

EDIT: Just confirmed the issue still exists even when building the HelloWorld app and using a predefined particle:

image1380×596 52.3 KB

image1828×266 70.6 KB

2

Ok, cool. Thanks guys. I’ll answer this one for anyone else experiencing the same issue.

I have found that the issue is “fixed” after switching your emulator renderer to SwiftShader instead of the the Desktop native OpenGL renderer. “Fixed” is in quotes because this prevents the crashing, but performance is so bad that it is virtually unusable. Not sure what has changed recently, but this has never been an issue until now.
